# SPRING BATCH: Sequential Steps

By
Paul Tomoiu
●
In
●
Published 2022-12-03

The tutorial explains how you can use sequential steps in Spring Batch.

With Spring Batch, you can define and run jobs. The jobs may have a step or many steps.

Typically, Batch Jobs are long-running, non-interactive and process large volumes of data, more than fits in memory or a single transaction. During a step, the job do something, a particular task, named tasklet. When you define a step you can define the next step you have to execute. A job could execute steps in a defined order.

When you define a step you have 2 models:

  1. run a simple task (tasklet)
  2. run a step using the following pattern READ-PROCESS-WRITE

This tutorial explains to you how to use the first approach.

We can have sequential steps and parallel steps. We can execute some tasks (steps) when a condition is true or false. Because of these things, you can create workflows using Spring Batch.

In order to create a simple example with 2 sequential steps, first you have to create a simple Maven Spring project with the pom.xml file having the following dependencies:

At this point it is supposed that the Job Repository has been configured already.

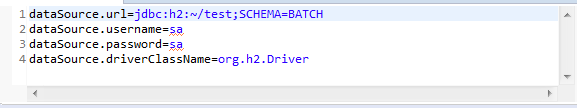

In order to see how to create a tasklet step, you have to create a batch.properties file with the following content :

and add the following classes:

package com.examples.tasklets;

import org.springframework.batch.core.StepContribution;
import org.springframework.batch.core.scope.context.ChunkContext;
import org.springframework.batch.core.step.tasklet.Tasklet;
import org.springframework.batch.repeat.RepeatStatus;
import org.springframework.context.annotation.Configuration;

@Configuration
public class MyTasklet1 implements Tasklet{

    @Override
    public RepeatStatus execute(StepContribution contribution, ChunkContext chunkContext) throws Exception {

        System.out.println("MyTasklet#1 is started ...");
        Thread.sleep(2000);
        System.out.println("MyTasklet#1 is completed ...");

        return RepeatStatus.FINISHED ;
    }
}
package com.examples.tasklets;

import org.springframework.batch.core.StepContribution;
import org.springframework.batch.core.scope.context.ChunkContext;
import org.springframework.batch.core.step.tasklet.Tasklet;
import org.springframework.batch.repeat.RepeatStatus;
import org.springframework.context.annotation.Configuration;

@Configuration
public class MyTasklet2 implements Tasklet{

    @Override
    public RepeatStatus execute(StepContribution contribution, ChunkContext chunkContext) throws Exception {

        System.out.println("MyTasklet#2 is started ...");
        Thread.sleep(2000);
        System.out.println("MyTasklet#2 is completed ...");

        return RepeatStatus.FINISHED ;
    }
}
package com.examples.config;

import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import com.examples.tasklets.MyTasklet1;

@Configuration
public class Job1 {

    @Autowired
    private JobBuilderFactory jobs;

    @Autowired
    private StepBuilderFactory steps;

    @Autowired
    MyTasklet1 taskletStep1;

    @Autowired
    MyTasklet1 taskletStep2;

    @Bean
    public Job myJob() {
        return jobs.get("My Job ...")
                   .start(step1())
                   .next(step2())
                   .build();
    }

    @Bean
    public Step step1() {

        return steps.get("Step1 Name")
                    .tasklet(taskletStep1)
                    .build();
    }

    @Bean
    public Step step2() {

        return steps.get("Step2 Name")
                    .tasklet(taskletStep2)
                    .build();
    }
}
package com.examples.config;

import javax.sql.DataSource;

import org.apache.commons.dbcp2.BasicDataSource;
import org.springframework.batch.core.configuration.annotation.EnableBatchProcessing;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.PropertySource;
import org.springframework.core.env.Environment;

@Configuration
@EnableBatchProcessing
@ComponentScan("com.examples.*")
@PropertySource("classpath:/com/examples/batch.properties")
public class SpringBatchConfiguration {

    @Autowired
    private Environment env;

    @Bean
    public DataSource dataSource() {
        BasicDataSource dataSource = new BasicDataSource();
        dataSource.setUrl(env.getRequiredProperty("dataSource.url"));
        dataSource.setDriverClassName(env.getRequiredProperty("dataSource.driverClassName"));
        dataSource.setUsername(env.getRequiredProperty("dataSource.username"));
        dataSource.setPassword(env.getRequiredProperty("dataSource.password"));

        return dataSource;
    }
}
package com.examples;

import org.springframework.batch.core.Job;
import org.springframework.batch.core.JobExecution;
import org.springframework.batch.core.JobParameters;
import org.springframework.batch.core.configuration.JobRegistry;
import org.springframework.batch.core.launch.JobLauncher;
import org.springframework.batch.core.repository.JobRepository;
import org.springframework.context.ApplicationContext;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;
import com.examples.config.SpringBatchConfiguration;

public class Main {
    public static void main(String[] args) throws Throwable {

        ApplicationContext context = new AnnotationConfigApplicationContext(SpringBatchConfiguration.class);

        JobRegistry jobRegistry = context.getBean("jobRegistry", JobRegistry.class);
        JobLauncher jobLauncher = context.getBean("jobLauncher", JobLauncher.class);
        JobRepository jobRepository = context.getBean("jobRepository", JobRepository.class);

        System.out.println(" jobRegistry: "+jobRegistry);
        System.out.println(" jobLauncher: "+jobLauncher);
        System.out.println(" jobRepository: "+jobRepository);

        Job job = context.getBean("myJob", Job.class);

        JobExecution jobExecution = jobLauncher.run(job, new JobParameters());
    }
}

As you can see a job can have 1 step.

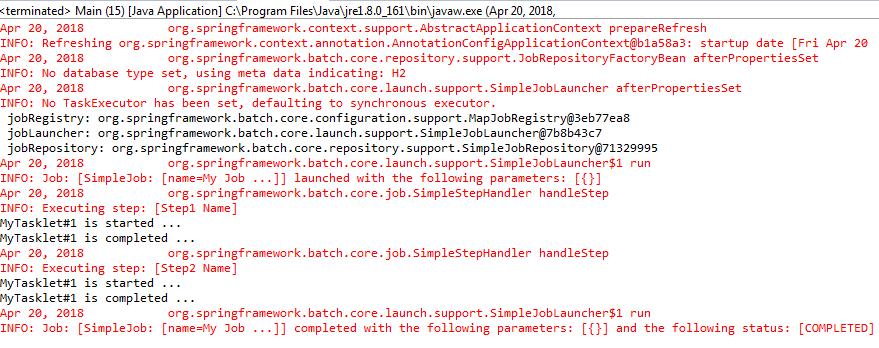

When you run the application for the first time you will see the following log:

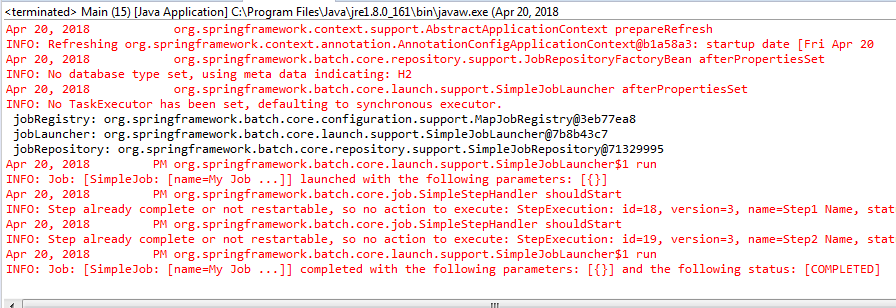

but when you run the second time you will see something like this:

The step is completed and not restartable, so you cannot run it again.
